This article applies to:

The new Email Builder offers a ton of new features to create more powerful and impactful email templates. The new builder will eventually be available for sending broadcasts as well. Just a few of the new features include:

Many new pre-made gallery templates to choose from based on Industry
Multi-column support.
More content blocks: Countdown timer and more!
Switch from desktop design to mobile design by clicking a button.
Images - The new Email Builder provides a vast stock image library
Timer - it’s impactful! It creates a sense of urgency and can be used to promote specials or sales
Start from scratch and text only option - don’t need a template? The new Email Builder provides an easy way to personalize your emails
Template management - a bigger selection of templates to choose from to start modifying and creating your content.
You can send from any email address in which you have verified the domain.

Getting Started

Open a campaign sequence

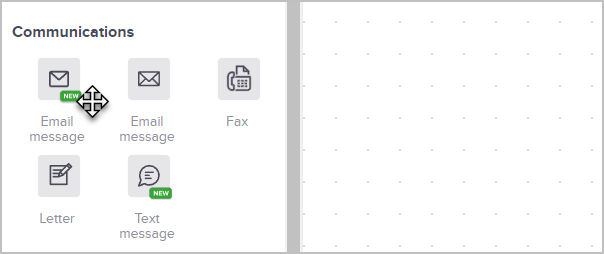

Click and drag the New Email Message icon onto the canvas

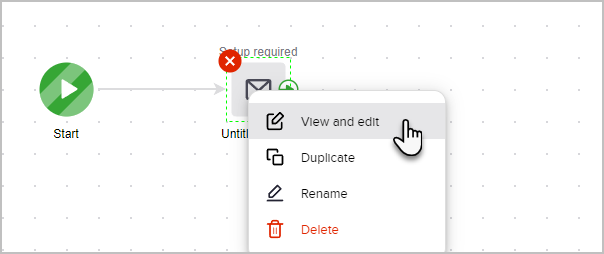

Double-click it, or single-click and choose View and edit to set up your email

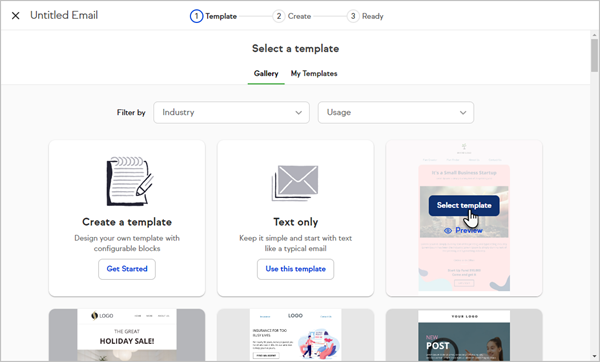

Select one of the gallery templates

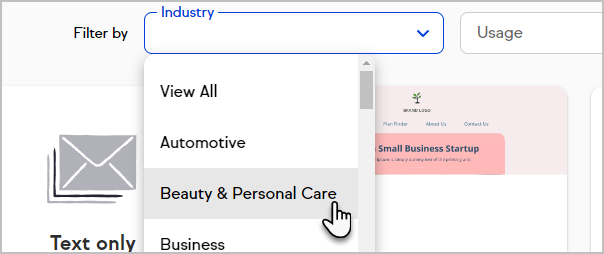

Note that you can filter them based on industry and usage

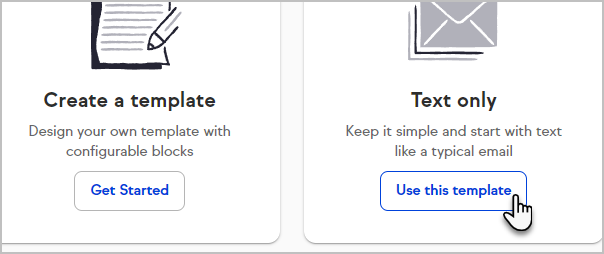

Or start from scratch by creating your template or choose Text only if you want to keep it simple

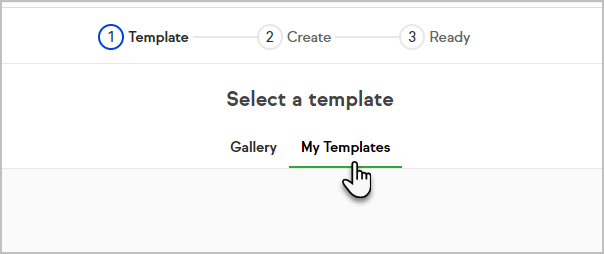

You can also choose a template that you have saved previously

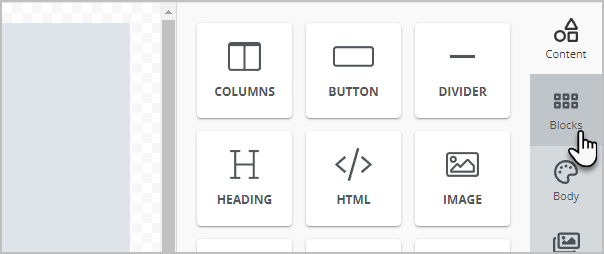

Blocks

To start configuring the structure and layout of your email, click on the Blocks section and you can add new blocks into the template.

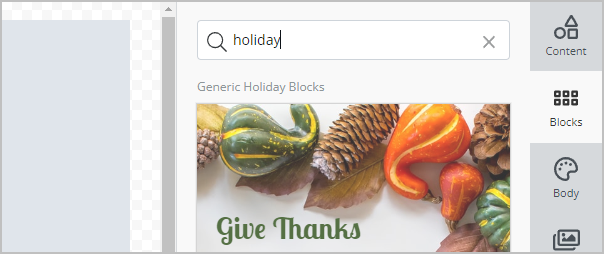

You can search for pre-made blocks to add to the template

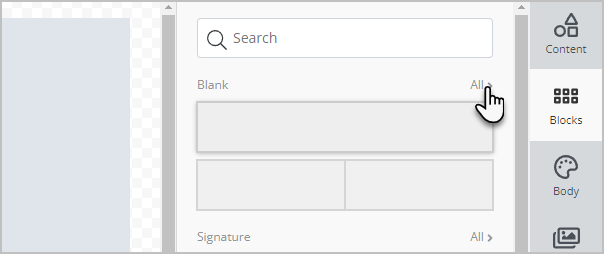

Or add blank blocks for more customization. Click the "All >" button to see more options

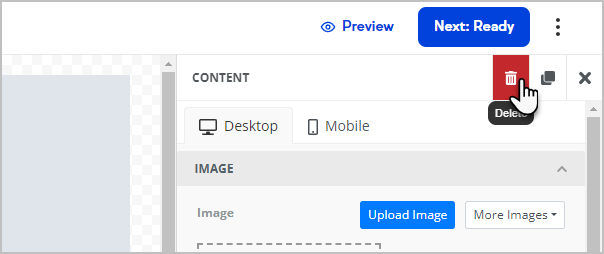

To remove a block, just select it in your template and click the delete button

Body

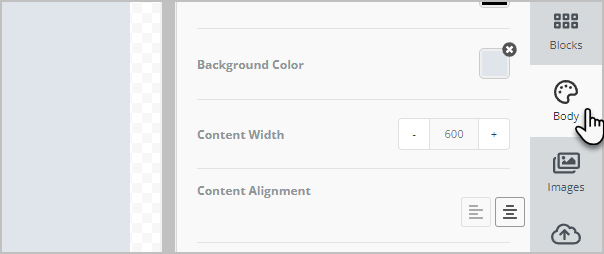

Click the Body to modify the text color, font family, background color, etc...

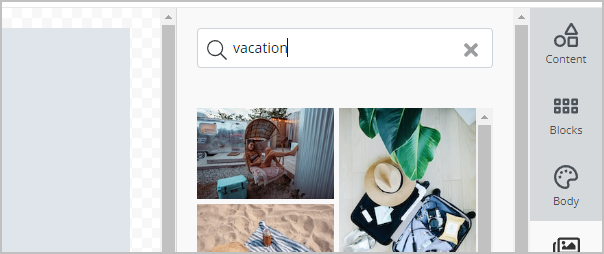

Images

Click images to search from a huge database of free images

Uploads

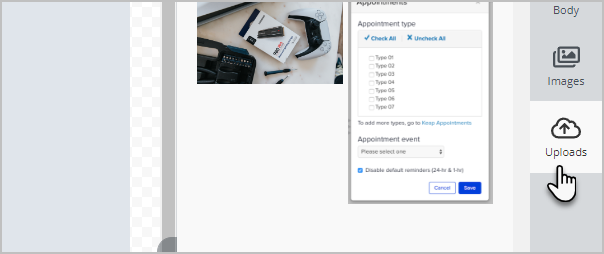

Click to upload your own images to use in your email templates.

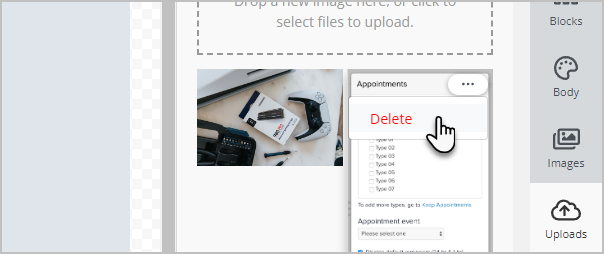

You can also delete ones that you don't want to use anymore

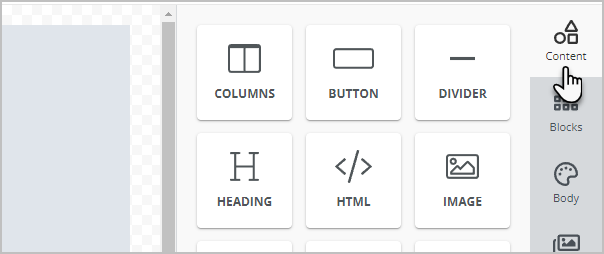

Content

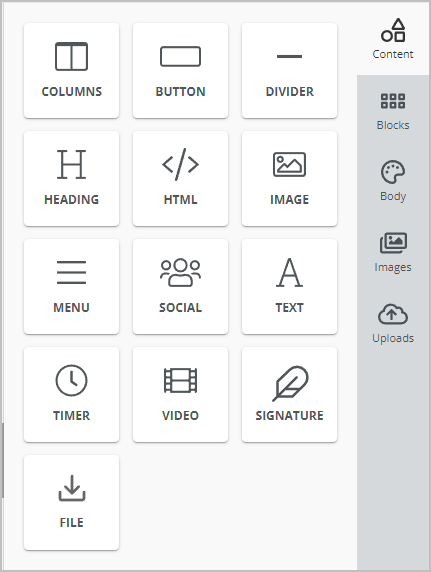

You can use various types of content in your email. Just click and drag an item onto your template

Mobile

Click the icons at the bottom-left of the email builder to switch between the desktop and mobile edition

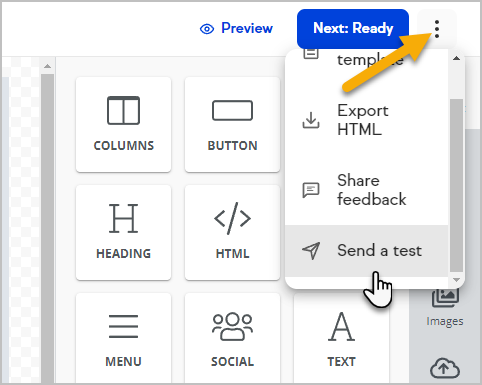

Send a test email

Note that you can send yourself a test email while creating your email template

Customize text with the formatting toolbar

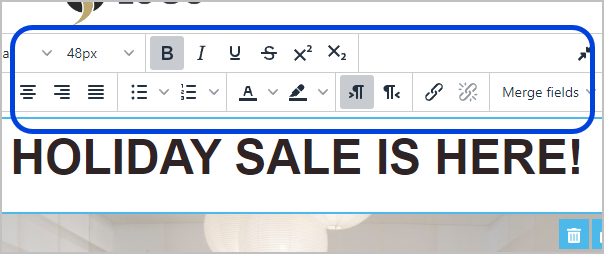

Just click inside a section with text and the formatting toolbar will appear

Add tags

Click here to learn how to add tags when a link is clicked

Add a text hyperlink

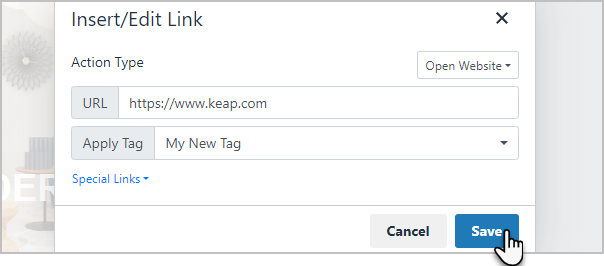

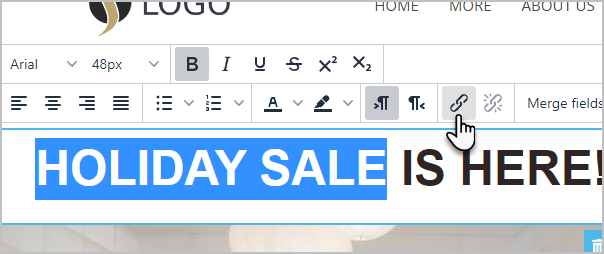

Highlight the text you would like to link and click the hyperlink button
Add the URL and you can optionally apply a tag to the contact when they click the link, then click Save.

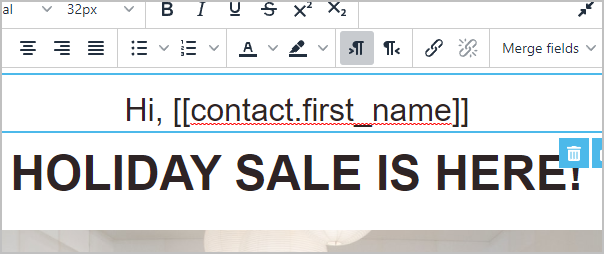

Merge Fields

You can personalize your email by merging fields from the contact record into your email template

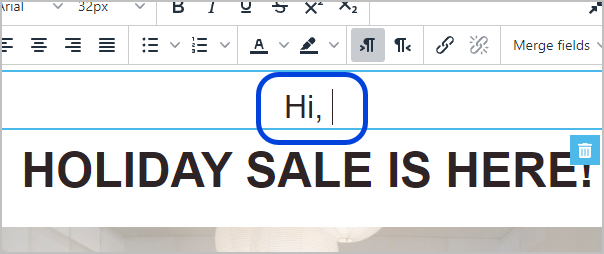

Select where in the text you would like to merge a field from the contact record

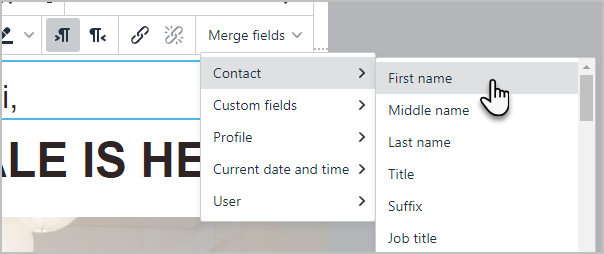

Click the Merge fields drop-down and choose your merge field

Merge custom fields

Click here to learn how to merge your contact's custom fields into the email template

From address, subject line, etc...

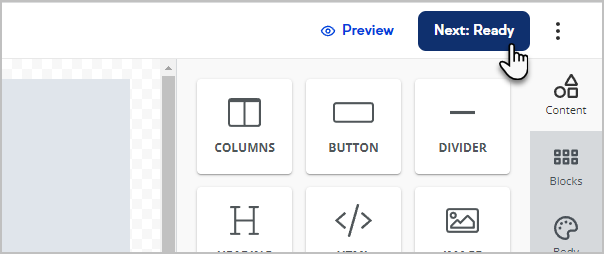

After you are finished customizing your email, click Next - Ready
Finish setting up the details of your email and set it to Ready and Done

Edit images

You can edit images within the new Email Builder. First begin creating your email, then follow the steps below.

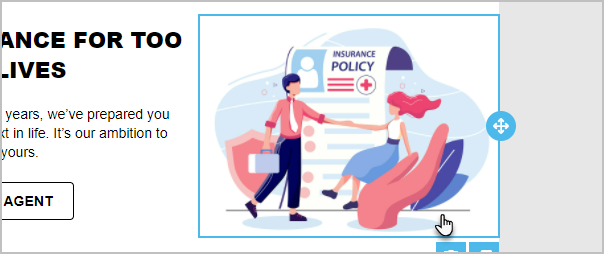

Select an image

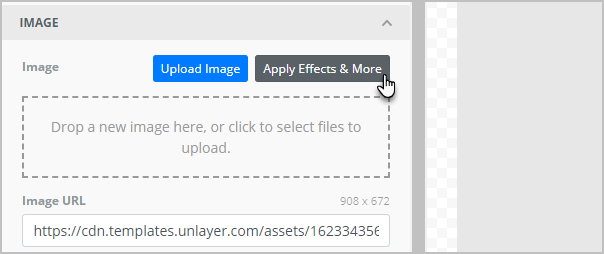

Click Apply Effects & More

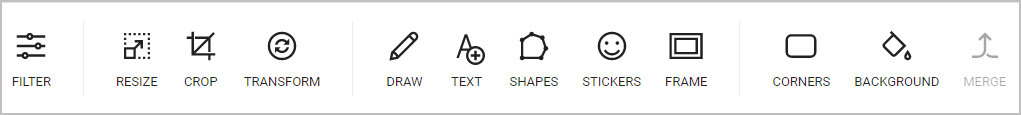

Use the tools to edit your image

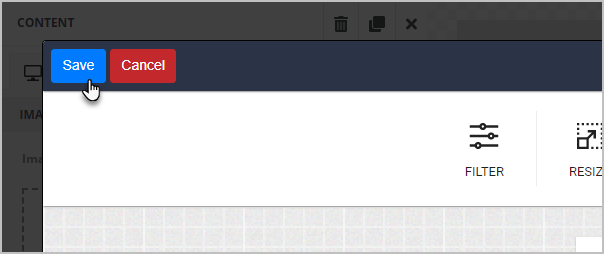

Click Save to apply your changes

FAQs

Can I use existing legacy email templates in the new email builder? No. Templates created in the legacy email builder are not compatible with the new email builder. You can recreate your templates in the new email builder and take advantage of new features such as multi-column layouts, countdown timers, and a stock image library. Legacy templates will continue to work in the legacy builder for campaigns that already use them.

If I share a campaign that uses legacy email templates, will those emails still work? Yes. When you share a campaign that contains emails built in the legacy builder, those emails remain editable in the legacy builder. By default, the legacy builder does not appear in the Control Panel of a campaign sequence, but any legacy email items already on the campaign builder canvas will open in the builder in which they were originally created.

Why does every image upload fail with a "Something went wrong" error? If every image upload attempt in the email builder produces a "Something went wrong" error, check the following causes in order:

File size too large — the email builder has a maximum image file size of 5MB. Compress the image before uploading using a tool like TinyPNG or your image editor's export settings.
Unsupported file type — supported formats are JPG, PNG, and GIF only. WebP, HEIC, TIFF, and other formats are not supported and will produce this error.
Browser extension interference — extensions that block scripts or network requests (such as Privacy Badger, uBlock Origin, or ad blockers) can interrupt the image upload request. Try uploading in an incognito or private browsing window with extensions disabled.
Image upload service temporarily unavailable — if the file is under 5MB, in JPG or PNG format, and the error persists across multiple browsers with extensions disabled, the image upload service (not the email builder itself) may be experiencing a temporary interruption. The email builder remains fully functional during an image upload service interruption. Wait 10–15 minutes and try uploading the image again.

If the error continues after confirming the file meets all requirements and trying again after 15 minutes, contact support. An agent can check whether there is an active issue with the image upload service for your account.

Can I embed a video directly in the email builder? No. Videos cannot play directly inside an email due to email file size limits and email client security restrictions. To include a video, use the Video content block to insert a YouTube or Vimeo link. The email builder will automatically generate a clickable preview image from the video URL. When a recipient clicks the preview image, the video opens in their browser.

Are YouTube Shorts URLs supported in the new email builder? No. YouTube Shorts URLs (youtube.com/shorts/) are not supported in the Video content block. To use a YouTube Short, convert the Shorts URL to a standard YouTube URL by copying the video ID (the string of characters after /shorts/) and placing it at the end of https://www.youtube.com/watch?v=. For example, a Shorts URL ending in /shorts/abc123xyz becomes https://www.youtube.com/watch?v=abc123xyz. Paste the converted URL into the Video content block.

Can I add custom merge fields in the "To" field in campaigns? Yes. The new email builder supports custom merge fields in the "To" field for campaigns. Only the ~Contact._MyCustomEmail~ syntax is supported. The liquid syntax using brackets [ ] is not supported in the "To" field.

Can I use custom merge fields in the email body? Yes. Custom merge fields are supported in the email body of the new email builder. To add a custom merge field, place your cursor in the text area where you want the field to appear, click the Merge fields drop-down in the formatting toolbar, and select your custom field. For a full list of supported merge fields and syntax, see how to merge custom fields into the email builder.

Where are the global font and style settings? Global font and style settings are located in the Body section of the right-hand navigation panel inside the email builder. Click Body in the right-hand panel to access font type, text color, background color, and other global design options. Changes made in the Body section apply to the entire email template.

Are all fonts supported in all email clients? No. Email clients such as Outlook, Gmail, and Apple Mail do not support all font types. To ensure the font you select displays correctly for all recipients, use one of the following web-safe fonts: Arial, Verdana, Tahoma, Trebuchet MS, Times New Roman, Georgia, Garamond, Courier New, or Brush Script MT. Fonts outside this list may fall back to a default font in email clients that do not support them.

Can I send from a custom email address? Yes. You can send email from any address on a domain you have validated. To validate a domain before sending, see how to validate a custom domain for sending.

Can I tag a contact when they click a link in the email? Yes. You can apply up to 10 tags to a single link. When a contact clicks the link, all applied tags are added to their contact record automatically. To set up link-click tagging, see how to add a tag when a link is clicked.

Can I add a hosted file download to an email? Yes. The new email builder includes a File content block. Drag the File block onto your email template to link to a hosted file. Recipients will see a download link in the email.

Where are campaign merge fields in the campaign builder? Campaign merge fields are located inside the campaign under Actions, then Merge fields. Campaign merge fields are supported for content publishing in the new email builder.

Does the new email builder support A/B testing? No. A/B testing is not available in the new email builder. Usage data showed fewer than 1% of Max Classic users used A/B testing in the legacy builder, so it is not a current priority for the new builder. To share feedback about A/B testing, use the in-app feedback option or contact support.

Is the new email builder available for broadcast emails? Not yet. The new email builder is currently available for campaign sequence emails only. Broadcast email support is planned for a future update. Broadcast emails continue to use the legacy email builder in Marketing > Templates.
